Hyper compressors
Most reliable choice since 1951
The Hyper compressor is a high-pressure reciprocating compressor for low density polyethylene plants (LDPE) and ethylene vinyl acetate (EVA), and compress ethylene with discharge pressure up to 3’500 bara / 50’000 psia.
Your benefits
- Low Total Cost of Ownership (TCO)
- Optimized operating cost by long MTBO
- Low maintanence cost by shortest downtime
- Low life cycle cost
- Long service life
- Global support
Features
- HyproPull™ & HyproPack™ for easy maintenance.
- Distance piece to prevents ethylene gas entering the crankcase.
- Long life time of the high-pressure packing by simple alignment of the plunger due to auxiliary crosshead.
- Minimum wear and tear of moving parts thanks to low spead.
- Demand specific frame sizes to enable highest availabilaty of the plant.
Technical data
| Model | Cylinders | Nominal speed rpm | Max. power kW | Plant capacity kta |
|---|---|---|---|---|
| H | 4 - 8 | 200 | 8'000 | 30 - 70 |
F | 4 - 10 | 200 | 20'000 | 70 - 200 |
| K | 6 - 14 | 200 | 38'000 | 200 - 550 |
Tailored solutions
Proven track record with all technologies and licensors for LDPE and EVA production.
Get in touch
Talk to our specialists.
Downloads
- Hyper compressor for LDPE / EVA production EN pdf 6.26MB
More Languages
No other languages available
Technologies

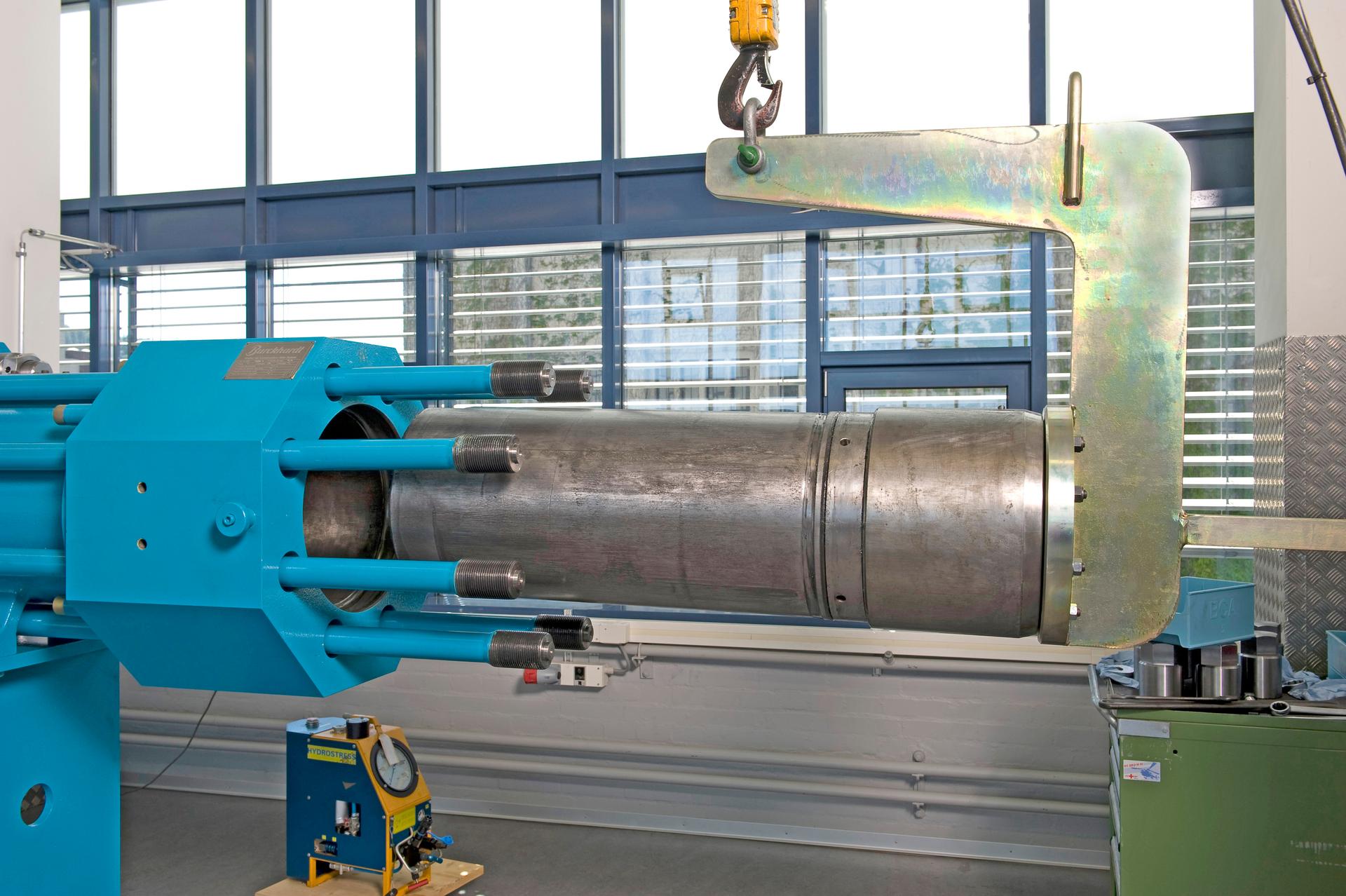

Integrated hydraulic cylinder for quick disassembly of cylinder

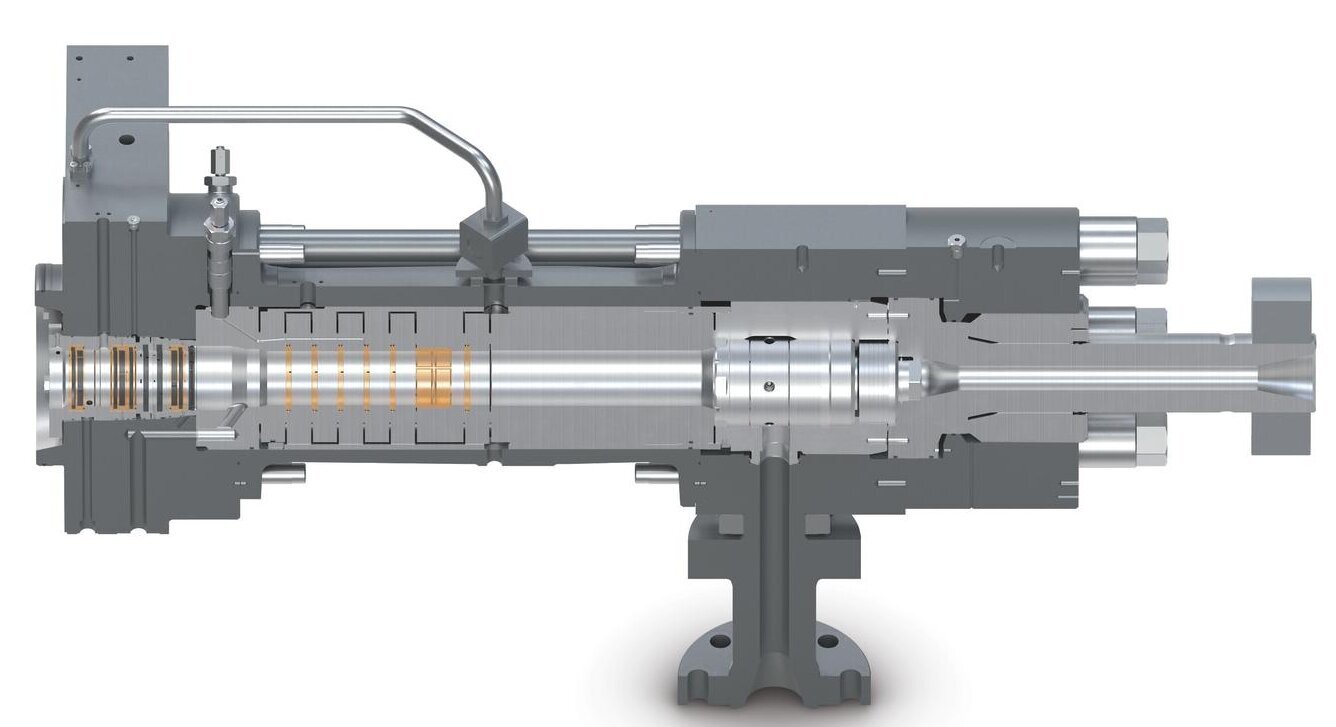

Pre-assembled packing for quick replacement

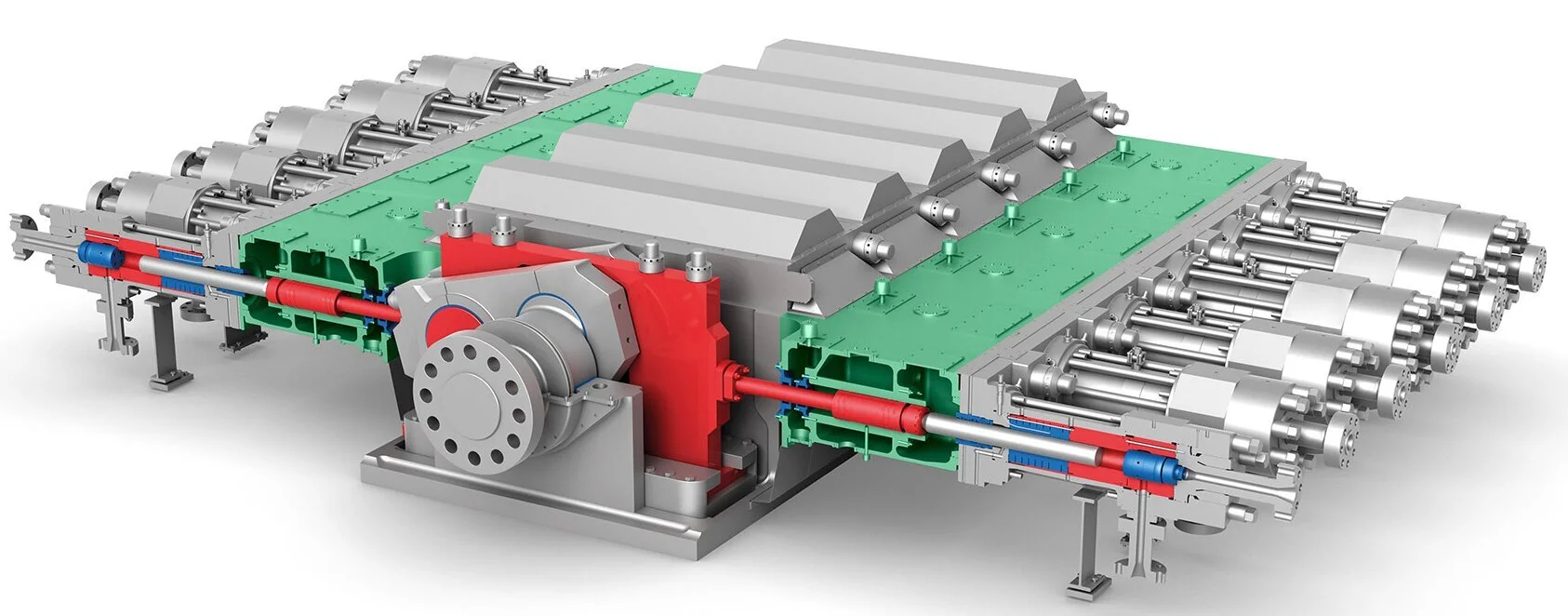

The additional distance piece prevents ethylene gas from entering the crankcase, during normal operation as well as in case of an incident. Oversized piping would lead any gas to a safe location. Therefore, our Hyper frame does not require an explosion relief valve.
Watch the assembly of a hyper compressor at the manufacturing site of Burckhardt Compression in Winterthur.
