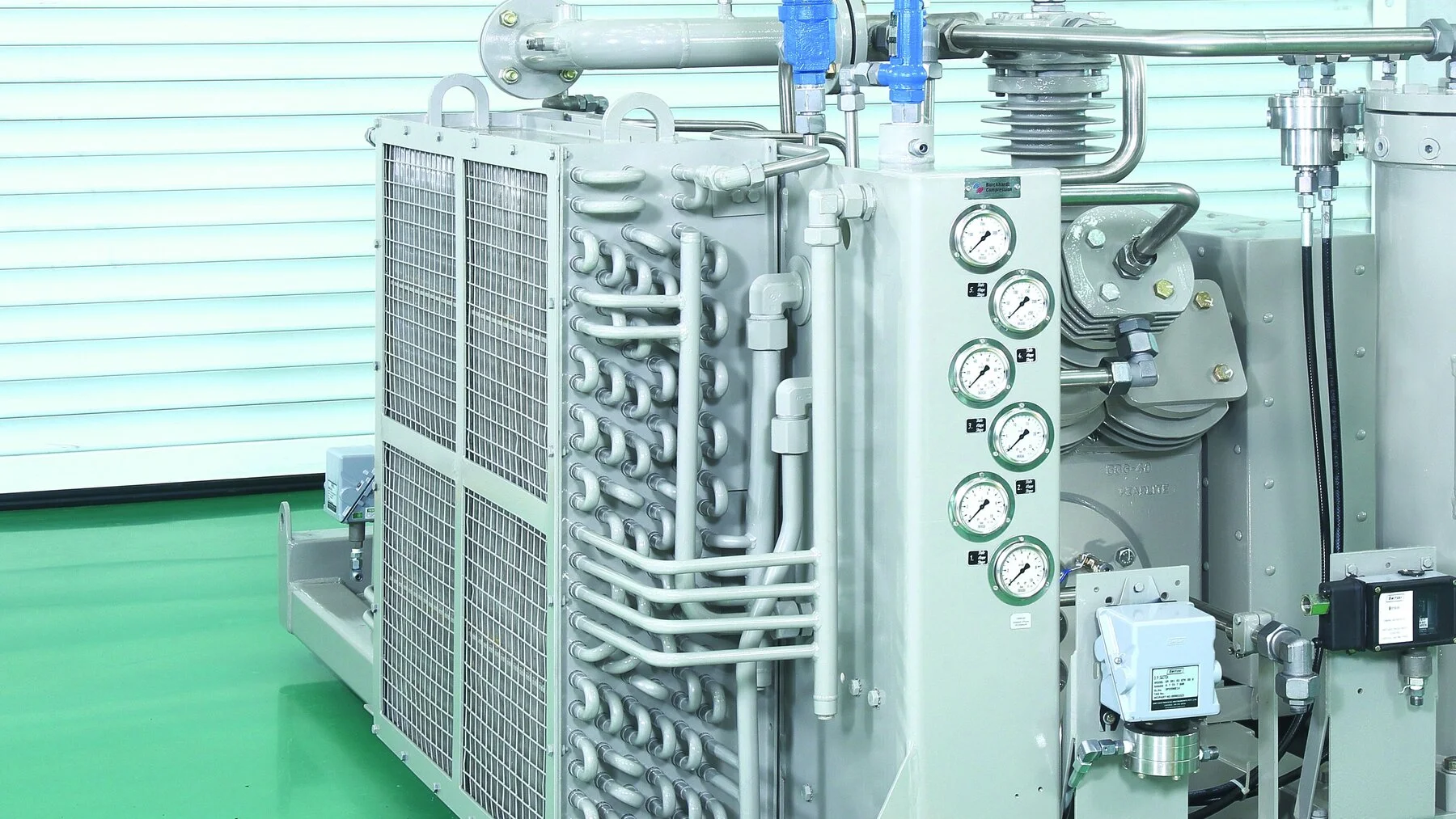

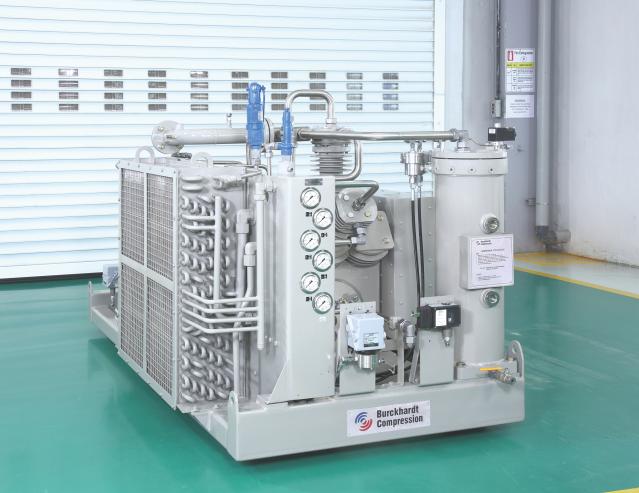

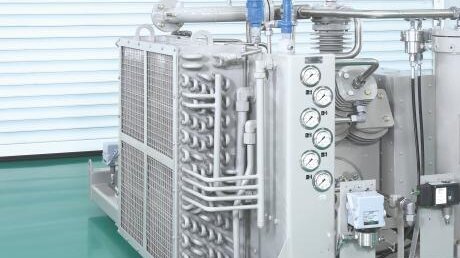

Standard high pressure compressor unit

Standard high-pressure compressors

Compact compressor packages for demanding applications

Standard High-Pressure Compressors are standardized packages with a fixed configuration within four frames (CB, CC, CU and CT). With the standardized operating speeds and scope of supply we meet most customer’s enquiries.


Your benefits

  • Highest operational efficiency
  • Highly reliable systems
  • Ready to use skid-mounted and tested units

Features

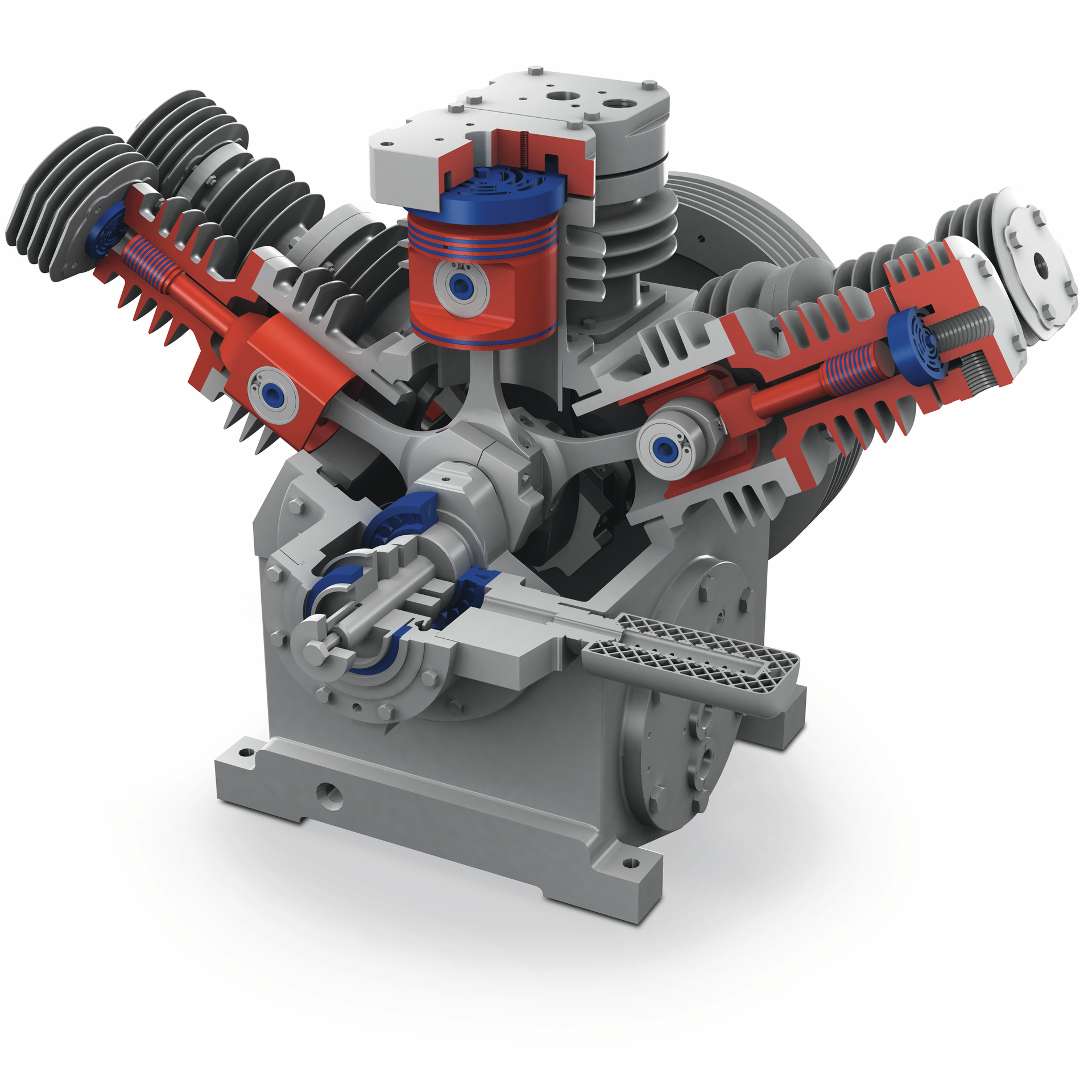

  • Cylinder configuration – ‘W’ for CU and inverted ‘T’ for CT
  • Critical and extremely light gases
  • Trunk piston design
  • Anti-vibration mounts
  • Air-cooled design
  • Auto condensate drain
  • Concentric valves
  • High degree of standardization
  • Minimal spares requirement

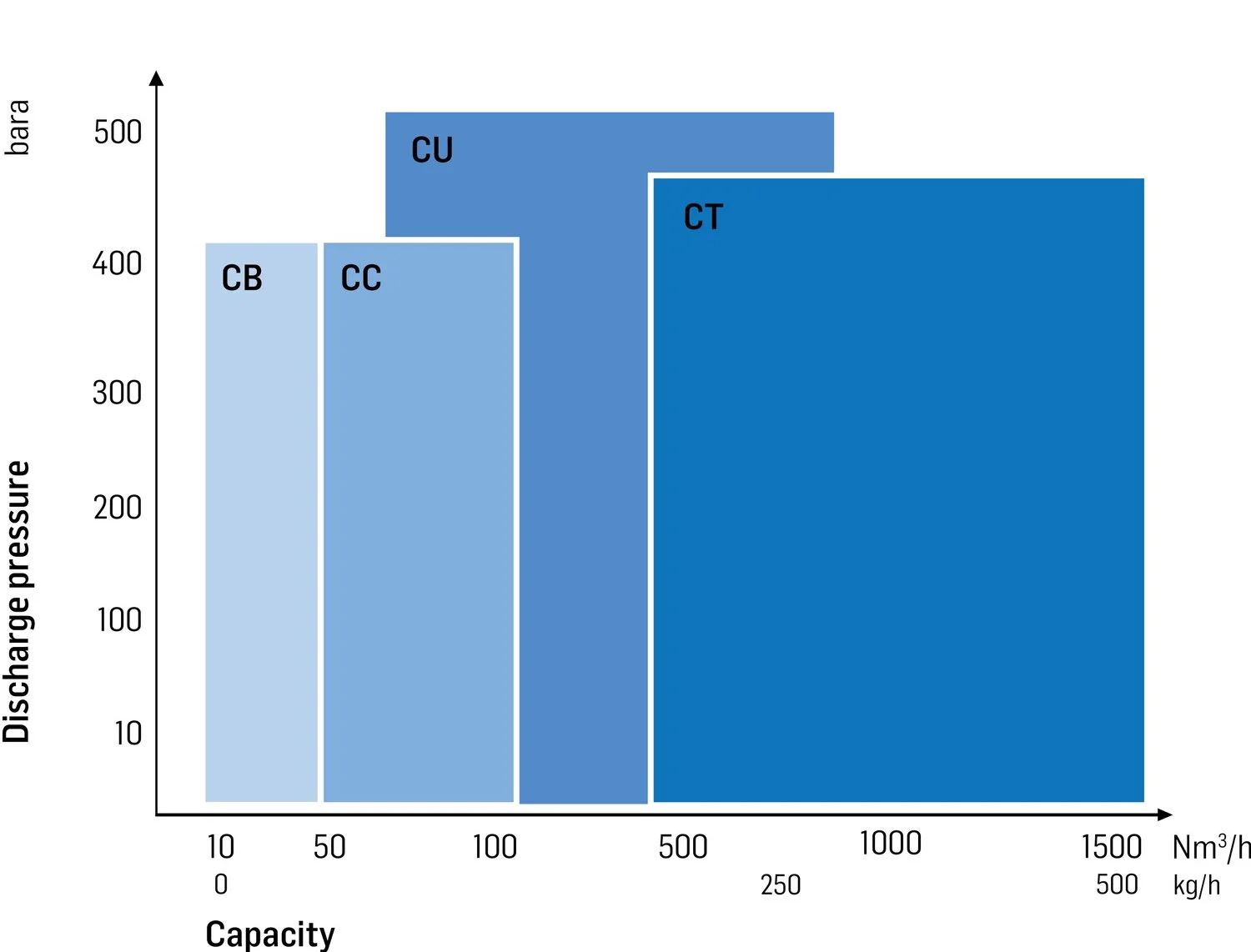

Performance range


Tailored solutions

  • Bottling plants for industrial gases
  • BOG handling
  • Electrolysis plants
  • Argon / helium recovery systems
  • NGV / CNG refueling systems
  • Hydropower stations, hydrotreatment, hydrodesulphurization
  • Seismic research
  • Steel industry
  • Purification and recovery systems
  • Oil well servicing
  • Industrial gases handling
  • Air separation plants
  • Air-blast circuit breaker systems
  • Fertilizer plants and many more ...

Gas types

  • Air
  • Breathing air
  • Hydrogen
  • Nitrogen
  • Helium
  • Argon
  • Natural Gas
  • Other non-corrosive gases and gas mixtures

Get in touch

Talk to our specialists.

Contact us

Downloads


Technical data

Air cooled

Type

Stroke mm

Max. speed rpm

Rated power kW

Width mm

Height mm

Length mm

Weight  kg

CC 100 1'365 45 1'250 1'415 1'900 1'350
CU 100 1'230 110 1'200 1'430 2'600 1'800
CT 125 1'045 200 1'950 2'000 3'800 4'800

These models are available from 2 to 6 stage compression, as per application suction parameters and according to compressor sizing.
